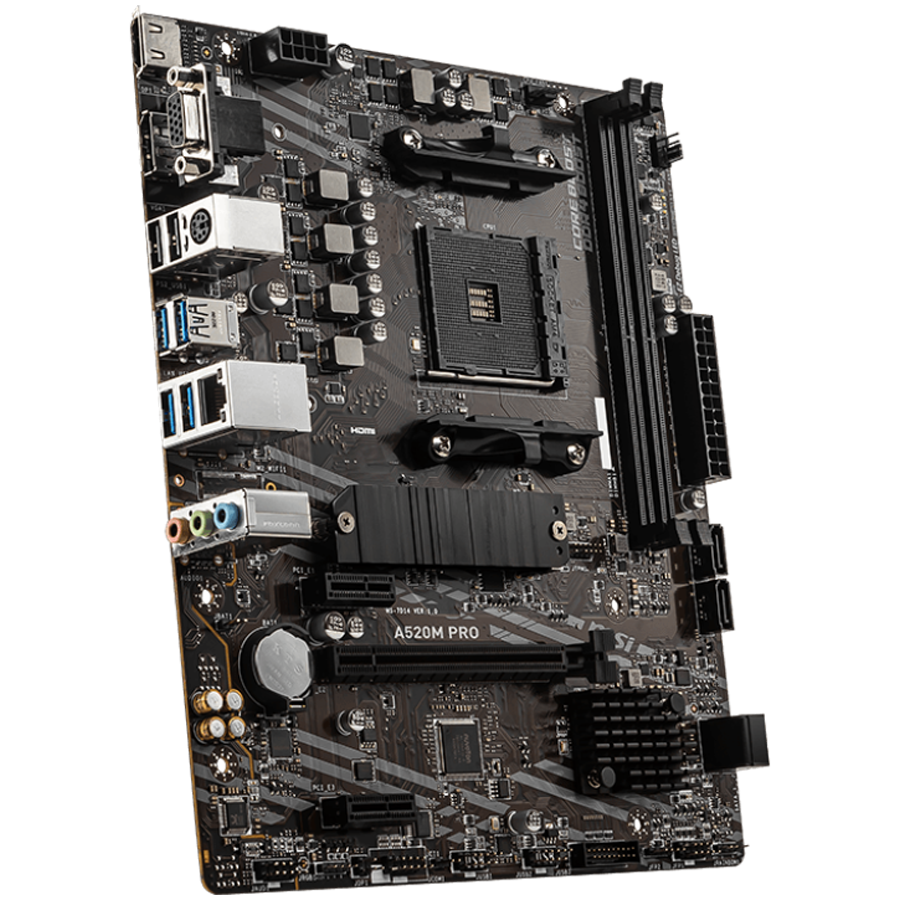

MSI MB AM4 A520 Chipset 2xDDR4 4xSata 1xM2
150,00 KM188,00 KM (-20%)
Garancija: 24 mjeseci(a)
MSI MB AM4 A520 Chipset 2xDDR4 4xSata 1xM2 1xDISPLAYPORT 1xVGA 1xHDMI M-ATX
| Chipset | AMD A520 |
| CPU podrška | AMD Ryzen Series 3rd Generation AMD Ryzen Series 4th Generation AMD Ryzen Series 5th Generation |
| CPU podnožje | Socket AM4 |
| CPU Max. količina | 1 |
| Vrsta memorije | DDR4 SDRAM |
| Format memorije | DIMM 288-pin |
| Brzina memorije | 1866MHz(PC4-14900) 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2667MHz(PC4-21300) 2800MHz(PC4-22400) 2933MHz(PC4-23400) 3000MHz(PC4-24000) 3200MHz(PC4-25600) |
| Max. kapacitet memorije | 64 GB |
| Količina utora | 2 |
| Provjera pogrešaka | non-ECC |
| Značajke memorije | Two DDR Channels Unbuffered Dual Rank Single Rank |
| Integriran | Storage Controller: Supports: Level 0, Level 1, Level 10 SATA III-600 (4) Storage Controller: PCIe 3.0 x4/SATA (1 x M.2 (Key M)) |
| Integrirani audio | Da |
| Vrsta | Integriran |
| Chipset | Realtek ALC892/ALC897 |
| Audio izlaz | 7.1 Channel Surround |
| Audio standard | HD audio |
| Integrirani LAN | Da |
| LAN Chipset | Realtek RTL8111H |
| WLAN | Integriran |
| Podržana brzina | Gigabit Ethernet/Fast Ethernet/Ethernet |
| PCI Express 3.0 x16 | 1 |
| PCI Express 3.0 x1 | 2 |
| HDMI | 1 (HDMI (Type A)) |
| VGA | 1 (15-pin D-sub) |
| DisplayPort | 1 |
| USB 3.2 Gen 1 | 4 (USB 3.2 (type A)) |
| USB 2.0 | 2 (USB 2.0 (type A)) |
| LAN | 1 (RJ-45) |
| Audio izlaz | 3 (3.5-mm minijack) |
| PS/2 | 1 |
| Kabeli | 2 x SATA 6Gb/s Cables |
| Dodaci | I/O Shield Brzi priručnik |
| Format | Micro ATX |
| Visina (mm) | 210 mm |
| Širina (mm) | 244 mm |
