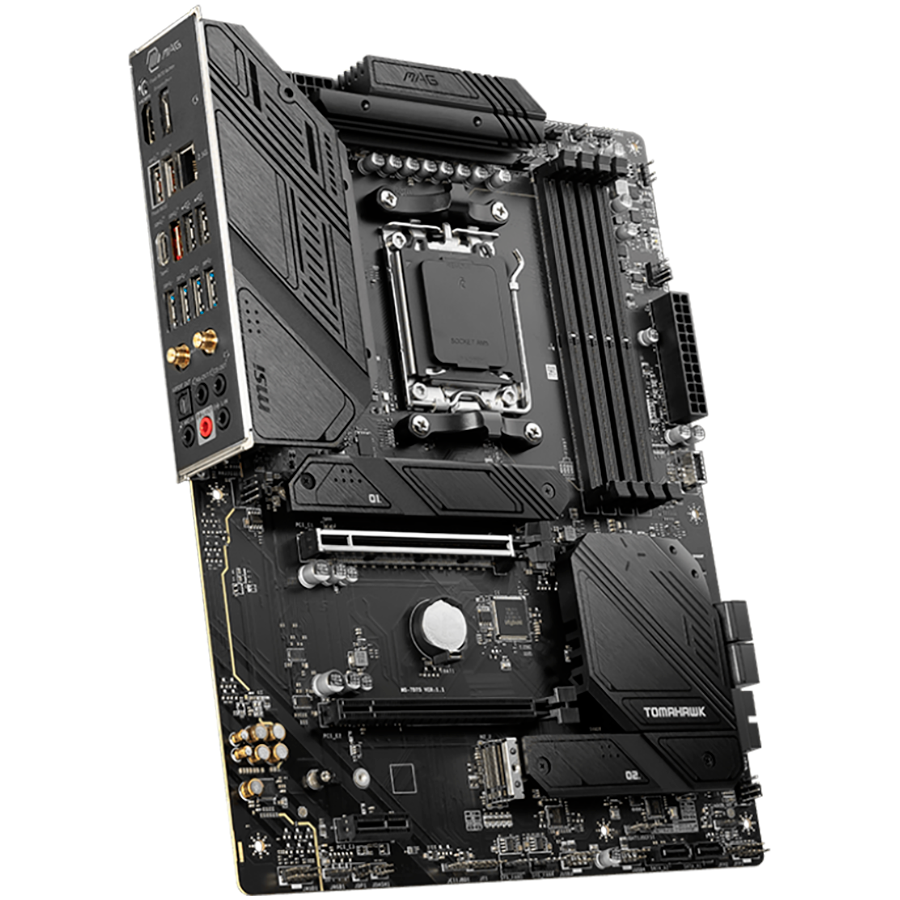

MSI Mainboard Desktop MAG B650 TOMAHAWK WIFI
527,00 KM
Garancija: 36 mjeseci(a)
MSI Mainboard Desktop MAG B650 TOMAHAWK WIFI (AM5, 4x DDR5 max. 128GB, 1x PCI-E 4.0 x16x16, 1x PCI-E x1, 3x M.2 4.0, 6x SATA, 2x USB 2.0, 4x USB 3.2 Gen1, 3x USB 3.2 Gen2, 1x USB Type-C 3.2 Gen2, 1x HDMI, 1x DP, RTL8125B 2.5Gbps LAN, Wi-Fi 6E, ATX)
| Chipset | AMD B650 |
| CPU podrška | AMD Ryzen 7000 Series |
| CPU podnožje | Socket AM5 |
| CPU Max. količina | 1 |
| Vrsta memorije | DDR5 SDRAM |
| Format memorije | DIMM 288-pin |
| Brzina memorije | 4800MHz(PC5-38400) |
| Max. kapacitet memorije | 128 GB |
| Količina utora | 4 |
| Provjera pogrešaka | non-ECC |
| Značajke memorije | Unbuffered Dual Rank Single Rank XMP |
| Integriran | Storage Controller: Supports: Level 0, Level 1, Level 10 SATA III-600 (6) Storage Controller: Supports: Level 0, Level 1 PCI Express 4.0 x4 (3 x M.2) Wi-Fi Controller: 1 x M.2 (Key E) |
| Integrirani audio | Da |
| Vrsta | Integriran |
| Chipset | Realtek ALC4080 |
| Širina audio podataka | 32-bit |
| Audio izlaz | 7.1 Channel Surround |
| Audio standard | HD audio |
| Integrirani LAN | Da |
| LAN Chipset | Realtek RTL8125B |
| Wi-Fi | IEEE 802.11ax Wi-Fi 6 |
| Bluetooth | Bluetooth 5.2 |
| Podržana brzina | 2.5 Gbps |
| PCI Express 4.0 x16 | 1 |
| PCI Express x1 | 1 |
| DisplayPort | 1 |
| LAN | 1 (RJ-45) |
| USB 2.0 | 2 (USB 2.0 (type A)) |
| USB 3.2 Gen 1 | 4 (USB 3.2 (type A)) |
| Antenna | 2 |
| Audio izlaz | 5 (3.5-mm minijack) |
| HDMI | 1 (HDMI (Type A)) |
| USB 3.2 Gen 2 | 3 (USB 3.2 (type A)) |
| USB 3.2 Gen 2 x2 | 1 (USB 3.2 (type C)) |
| S/PDIF-out | 1 (TOSLINK) |
| Podržani operativni sustavi | Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit |
| Kabeli | SATA Cable |
| Dodaci | Brzi priručnik WiFi antenna |
| Format | ATX |
| Visina (mm) | 304.8 mm |
| Širina (mm) | 243.84 mm |
