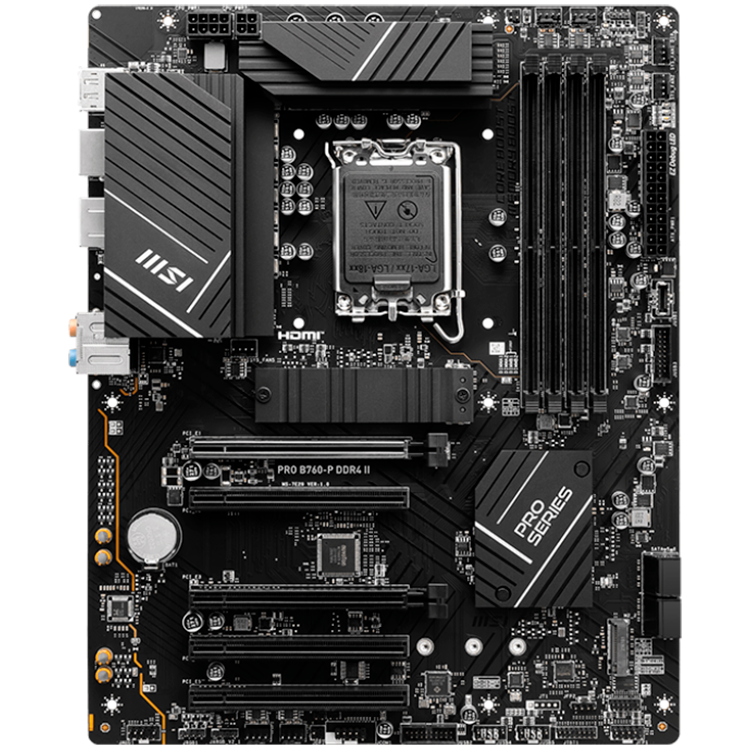

MSI Main Board Desktop PRO B760-P DDR4 II (LGA
260,00 KM306,00 KM (-15%)
Garancija: 36 mjeseci(a)

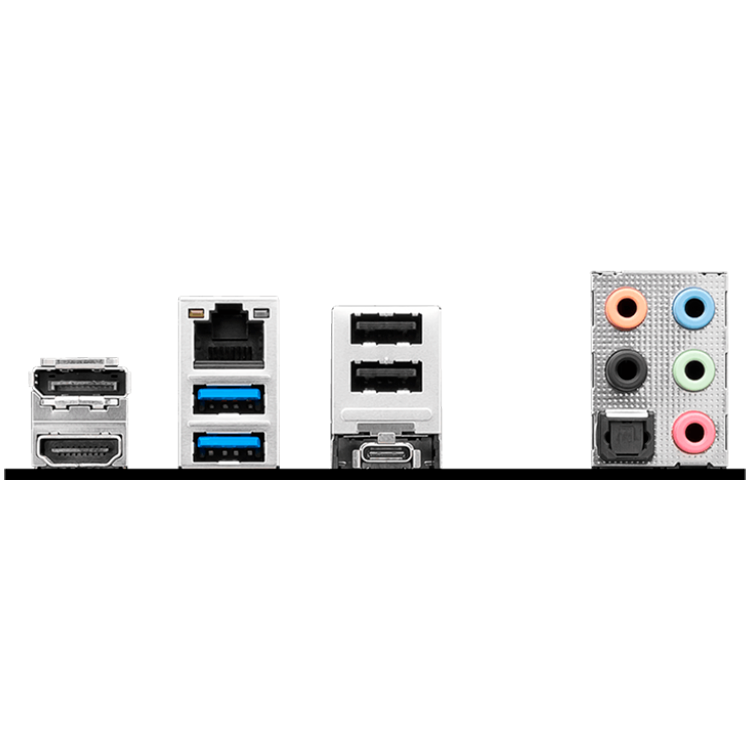

MSI Main Board Desktop PRO B760-P DDR4 II (LGA 1700, 4xDDR4,max 5333 OC, 5xPCI-E X16, 4xSATA6g, 2xM.2, RAID, 6xUSB3.2 Gen1, 4xUSB2.0, DP, HDMI, 7.1 Audio, 2.5LAN) ATX
| Chipset | Intel B760 |
| CPU podrška | Intel 12th Gen Processors Intel 13th Gen Processors Intel 14th Gen Processors |
| CPU podnožje | Socket 1700 |
| CPU Max. količina | 1 |
| Vrsta memorije | DDR4 SDRAM |
| Format memorije | DIMM 288-pin |
| Brzina memorije | 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300) 2933MHz(PC4-23400) 3200MHz(PC4-25600) |
| Max. kapacitet memorije | 128 GB |
| Količina utora | 4 |
| Provjera pogrešaka | non-ECC |
| Značajke memorije | Two DDR Channels Unbuffered XMP |
| Integriran | Storage Controller: PCI Express 4.0 x4 (2 x M.2 (Key M)) Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 SATA III-600 (4) |
| Integrirani audio | Da |
| Vrsta | Integriran |
| Chipset | Realtek ALC897 |
| Audio izlaz | 7.1 Channel Surround |
| Audio standard | HD audio |
| Integrirani LAN | Da |
| LAN Chipset | Realtek RTL8125BG |
| Podržana brzina | 2.5 Gbps |
| PCI Express x16 | 5 |
| USB 2.0 | 2 (USB 2.0 (type A)) |
| DisplayPort | 1 |
| HDMI | 1 (HDMI (Type A)) |
| USB 3.2 Gen 2 | 1 (USB 3.2 (type C)) |
| USB 3.2 Gen 1 | 2 (USB 3.2 (type A)) |
| Audio izlaz | 5 (3.5-mm minijack) |
| LAN | 1 (RJ-45) |
| S/PDIF-out Optical | 1 (TOSLINK) |
| Podržani operativni sustavi | Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit |
| Kabeli | SATA Cable |
| Dodaci | I/O Shield Brzi priručnik Vijci |
| Format | ATX |
| Širina (mm) | 243.84 mm |
| Dubina (mm) | 304.8 mm |
