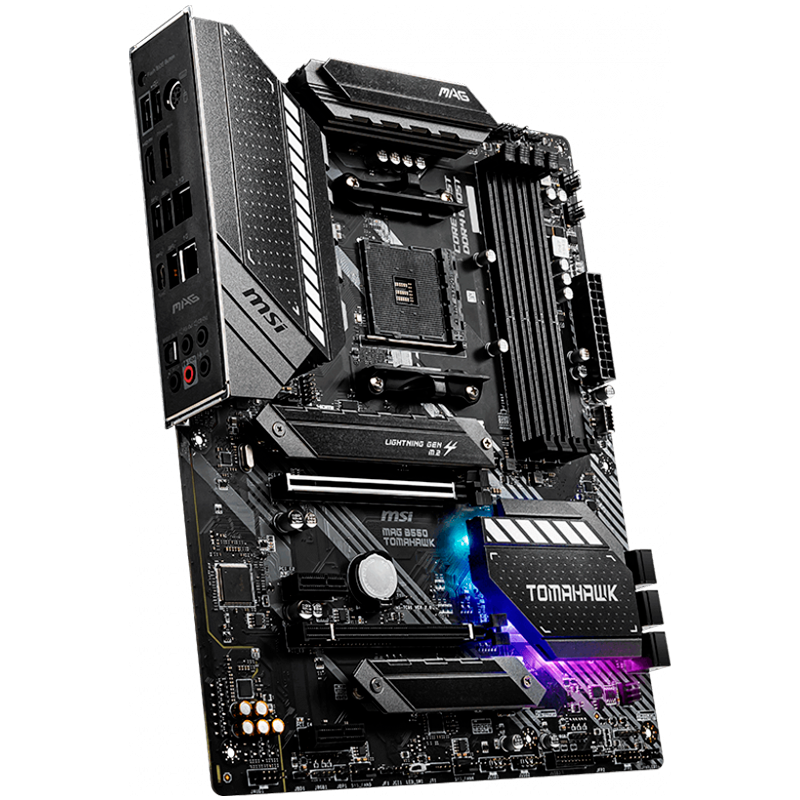

MSI Main Board Desktop MAG B550 TOMAHAWK (AM4
330,00 KM388,00 KM (-15%)
Garancija: 36 mjeseci(a)
MSI Main Board Desktop MAG B550 TOMAHAWK (AM4, 4xDDR4, 2xPCI-E x16, 2xPCI-E x1, 2xM.2, 6xSATA3, HDMI, DP, ATX, retail)
| Chipset | AMD B550 |
| CPU podrška | AMD Ryzen Series |
| CPU podnožje | Socket AM4 |
| CPU Max. količina | 1 |
| Vrsta memorije | DDR4 SDRAM |
| Format memorije | DIMM 288-pin |
| Brzina memorije | 1866MHz(PC4-14900) 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2667MHz(PC4-21300) 2800MHz(PC4-22400) 2933MHz(PC4-23400) 3000MHz(PC4-24000) 3200MHz(PC4-25600) |
| Max. kapacitet memorije | 128 GB |
| Količina utora | 4 |
| Provjera pogrešaka | non-ECC |
| Značajke memorije | Two DDR Channels Unbuffered XMP |
| Integriran | Storage Controller: Supports: Level 0, Level 1, Level 10 SATA III-600 (6) Storage Controller: PCIe/SATA (1 x M.2 (Key M)) Storage Controller: PCI Express 3.0 x4 (1 x M.2 (Key M)) |
| Integrirani audio | Da |
| Vrsta | Integriran |
| Chipset | Realtek ALC1200 |
| Audio izlaz | 7.1 Channel Surround |
| Audio standard | HD audio |
| Integrirani LAN | Da |
| LAN Chipset | Realtek RTL8111H |
| Podržana brzina | Gigabit Ethernet/Fast Ethernet/Ethernet |
| LAN Architecture | Integriran: 2.5 Gbps (Realtek RTL8125B) |
| PCI Express x16 | 2 |
| PCI Express 3.0 x1 | 2 |
| PS/2 | 1 |
| LAN | 2 (RJ-45) |
| USB 3.2 Gen 2 | 1 (USB 3.2 (type A)); 1 (USB 3.2 (type C)) |
| USB 2.0 | 2 (USB 2.0 (type A)) |
| USB 3.2 Gen 1 | 2 (USB 3.2 (type A)) |
| Audio izlaz | 5 (3.5-mm minijack) |
| HDMI | 1 (HDMI (Type A)) |
| DisplayPort | 1 |
| S/PDIF-out Optical | 1 (TOSLINK) |
| Power Connectors Type | 24+8 pin |
| Mainboard Features | AMD 2-Way CrossFire Technology RGB LED |
| Podržani operativni sustavi | Windows 10 |
| Kabeli | 2 x SATA cables |
| Dodaci | Priručnik Brzi priručnik Driver CD |
| Format | ATX |
| Visina (mm) | 244 mm |
| Širina (mm) | 305 mm |
