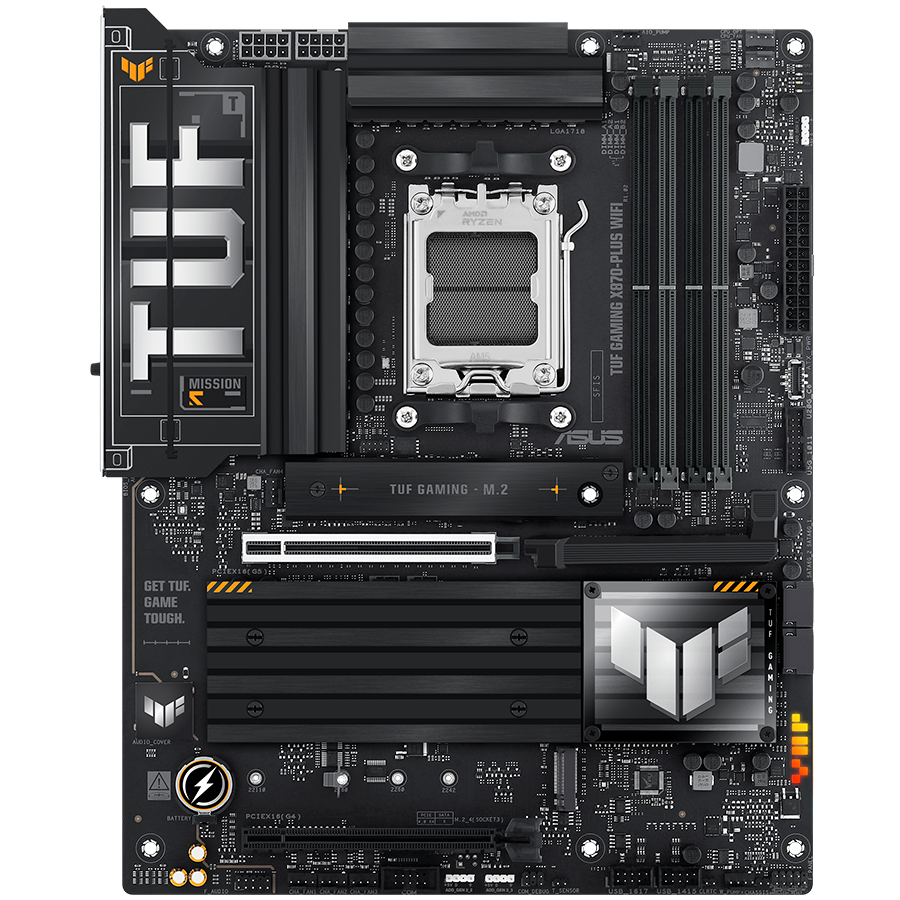

ASUS TUF GAMING X870-PLUS WIFI AM5 ATX gaming MB
750,00 KM
Garancija: 36 mjeseci(a)
ASUS TUF GAMING X870-PLUS WIFI AM5 ATX gaming MB – AMD X870 4xDIMM DDR5 4xM.2 2xSATA PCIe 5.0 2.5Gb Ethernet WiFi 7 + Bluetooth 1xHDMI 2xUSB4 40Gbps ports (USB Type-C) with Aura Sync
| Chipset | AMD X870 |
| CPU podrška | AMD Ryzen 7000 Series AMD Ryzen 8000 Series AMD Ryzen 9000 Series |
| CPU podnožje | Socket AM5 |
| CPU Max. količina | 1 |
| Vrsta memorije | DDR5 SDRAM |
| Format memorije | DIMM 288-pin |
| Brzina memorije | 8000MHz |
| Max. kapacitet memorije | 256 GB |
| Količina utora | 4 |
| Provjera pogrešaka | ECC and Non-ECC |
| Značajke memorije | Two DDR Channels Unbuffered AMD EXPO |
| Integriran | Storage Controller: Supports: Level 0, Level 1, Level 10 PCI Express 5.0 x4 (2 x M.2 (Key M)) Storage Controller: Supports: Level 0, Level 1, Level 10 PCI Express 4.0 x4 (2 x M.2 (Key M)) Storage Controller: Supports: Level 0, Level 1 SATA III-600 (2) |
| Plug-in-card | Wi-Fi Controller: |
| Integrirani audio | Da |
| Vrsta | Integriran |
| Chipset | Realtek ALC1220P |
| Širina audio podataka | 32-bit |
| Audio izlaz | 7.1 Channel Surround |
| Audio standard | HD audio |
| Integrirani LAN | Da |
| Wi-Fi | IEEE 802.11be Wi-Fi 7 |
| Bluetooth | Bluetooth 5.4 |
| Podržana brzina | 2.5 Gbps |
| PCI Express 5.0 x16 | 1 |
| PCI Express 4.0 x16 | 1 |

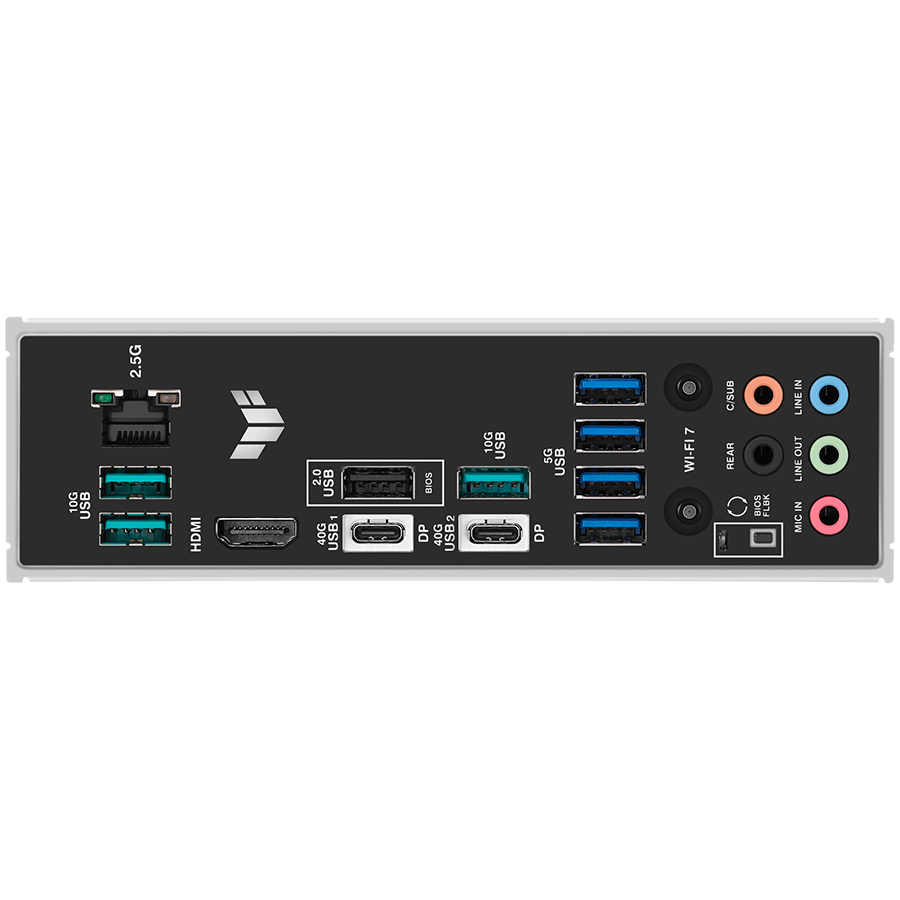

| USB 4.0 | 2 (USB 4.0 (type C)) |
| USB 3.2 Gen 2 | 3 (USB 3.2 (type A)) |
| USB 3.2 Gen 1 | 4 (USB 3.2 (type A)) |
| USB 2.0 | 1 (USB 2.0 (type A)) |
| HDMI | 1 (HDMI (Type A)) |
| LAN | 1 (RJ-45) |
| Audio izlaz | 5 (3.5-mm minijack) |
| BIOS vrsta | AMI |
| BIOS | ASUS CrashFree BIOS 3 UEFI PXE boot ASUS EZ Flash 3 256 Mb Flash ROM |
| Wake up/Sleep | Wake on LAN |
| Power Connectors Type | 24+8 pin |
| Mainboard Features | Aura Sync RGB LED |
| Podržani operativni sustavi | Microsoft Windows 11 |
| Kabeli | 2 x SATA 6Gb/s Cables |
| Dodaci | Brzi priručnik Vijci WiFi antenna Sticker |
| Format | ATX |
| Visina (mm) | 244 mm |
| Širina (mm) | 305 mm |
| Dužina (mm) | 353 mm |
| Širina (mm) | 273 mm |
| Visina (mm) | 68 mm |
