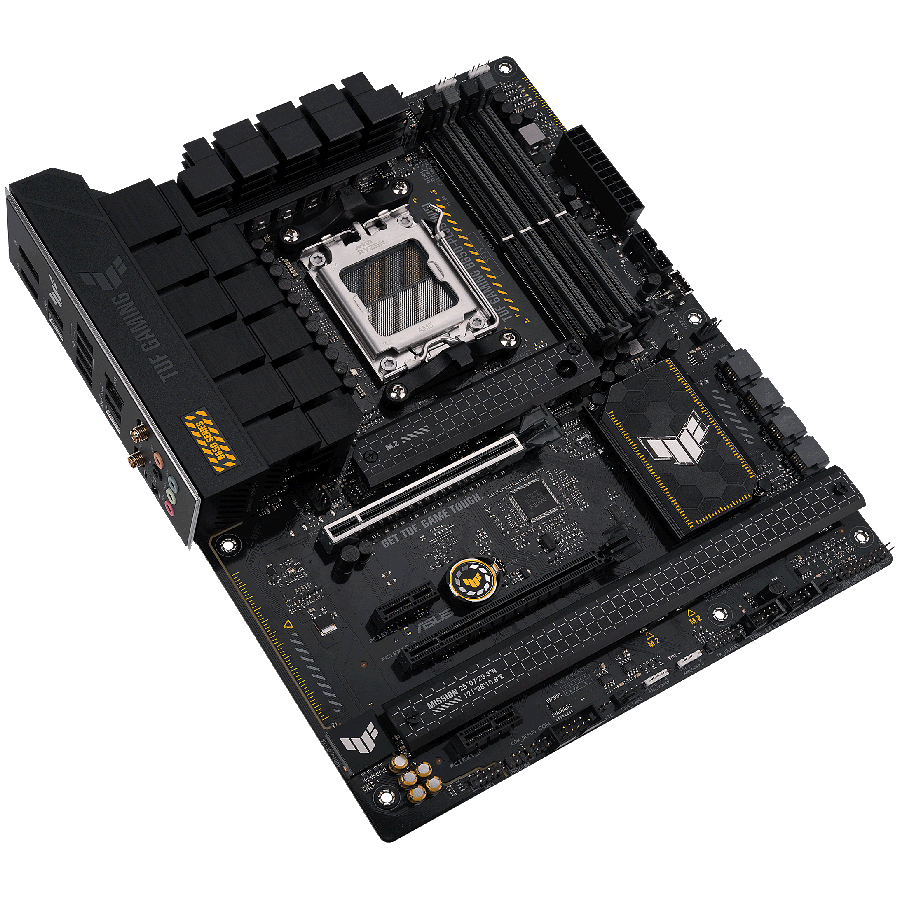

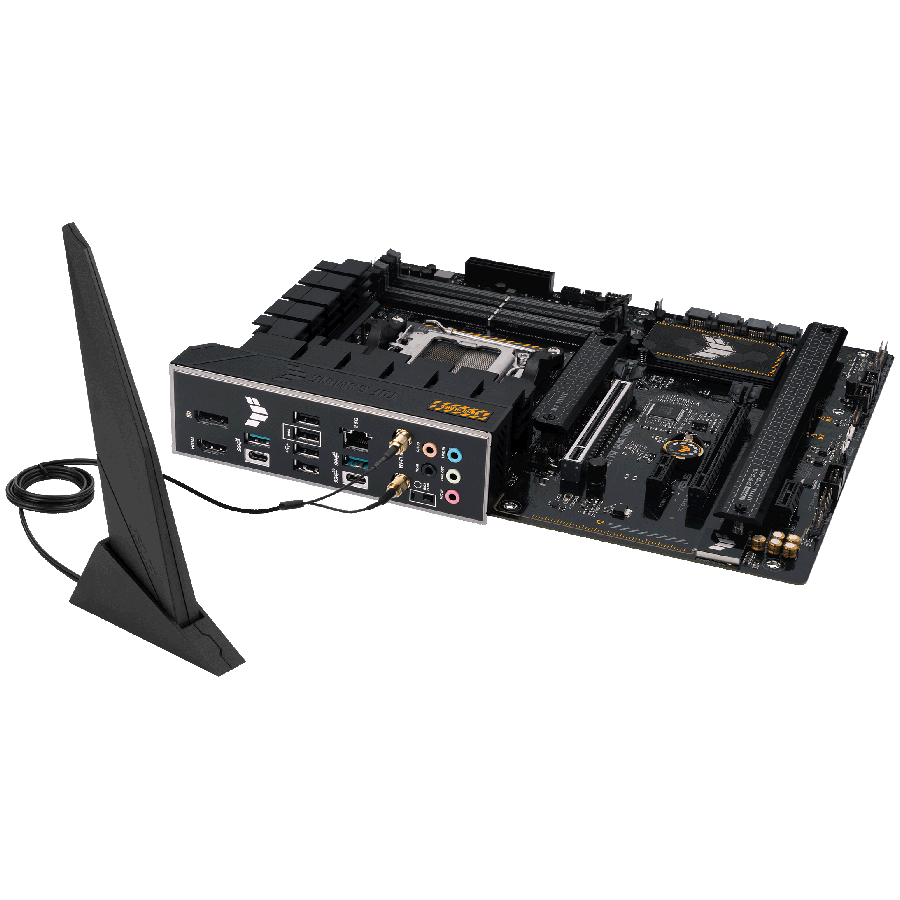

ASUS TUF GAMING B650-PLUS WIFI AM5 ATX gaming MB
390,00 KM488,00 KM (-20%)
Garancija: 36 mjeseci(a)
ASUS TUF GAMING B650-PLUS WIFI AM5 ATX gaming MB – AMD B650 4xDIMM DDR5 3xM.2 4xSATA PCIe 4.0 2.5Gb Ethernet WiFi 6 + Bluetooth 1xDisplayPort 1xHDMI with Aura Sync support
| Chipset | AMD B650 |
| CPU podrška | AMD Ryzen 7000 Series |
| CPU podnožje | Socket AM5 |
| CPU Max. količina | 1 |
| Vrsta memorije | DDR5 SDRAM |
| Format memorije | DIMM 288-pin |
| Brzina memorije | 5200MHz(PC5-41600) |
| Max. kapacitet memorije | 128 GB |
| Količina utora | 4 |
| Provjera pogrešaka | ECC/Non-ECC |
| Značajke memorije | Two DDR Channels Unbuffered OptiMem II |
| Integriran | Storage Controller: PCI Express 5.0 x4 (1 x M.2 (Key M)) Storage Controller: PCI Express 4.0 x4 (2 x M.2 (Key M)) Storage Controller: Supports: Level 0, Level 1, Level 10 SATA III-600 (4) Wi-Fi Controller: |
| Integrirani audio | Da |
| Vrsta | Integriran |
| Širina audio podataka | 24-bit |
| Audio izlaz | 7.1 Channel Surround |
| Audio standard | HD audio |
| Integrirani LAN | Da |
| Wi-Fi | IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n Wi-Fi 4 IEEE 802.11ac Wi-Fi 5 IEEE 802.11ax Wi-Fi 6 |
| Bluetooth | Bluetooth 5.2 |
| Podržana brzina | 2.5 Gbps |
| PCI Express 4.0 x16 | 2 |
| PCI Express 4.0 x1 | 2 |
| USB 3.2 Gen 2 x2 | 1 (USB 3.2 (type C)) |
| USB 3.2 Gen 2 | 2 (USB 3.2 (type A)); 1 (USB 3.2 (type C)) |
| USB 2.0 | 4 (USB 2.0 (type A)) |
| DisplayPort | 1 |
| HDMI | 1 (HDMI (Type A)) |
| LAN | 1 (RJ-45) |
| Audio izlaz | 5 (3.5-mm minijack) |
| BIOS vrsta | AMI |
| BIOS | ASUS CrashFree BIOS 3 UEFI ASUS EZ Flash 3 256 Mb Flash ROM |
| Power Connectors Type | 24+8+4 pin |
| Podržani operativni sustavi | Microsoft Windows 11 Microsoft Windows 10 64-bit |
| Format | ATX |
| Visina (mm) | 244 mm |
| Širina (mm) | 305 mm |
| Dužina (mm) | 338 mm |
| Širina (mm) | 273 mm |
| Visina (mm) | 68 mm |
