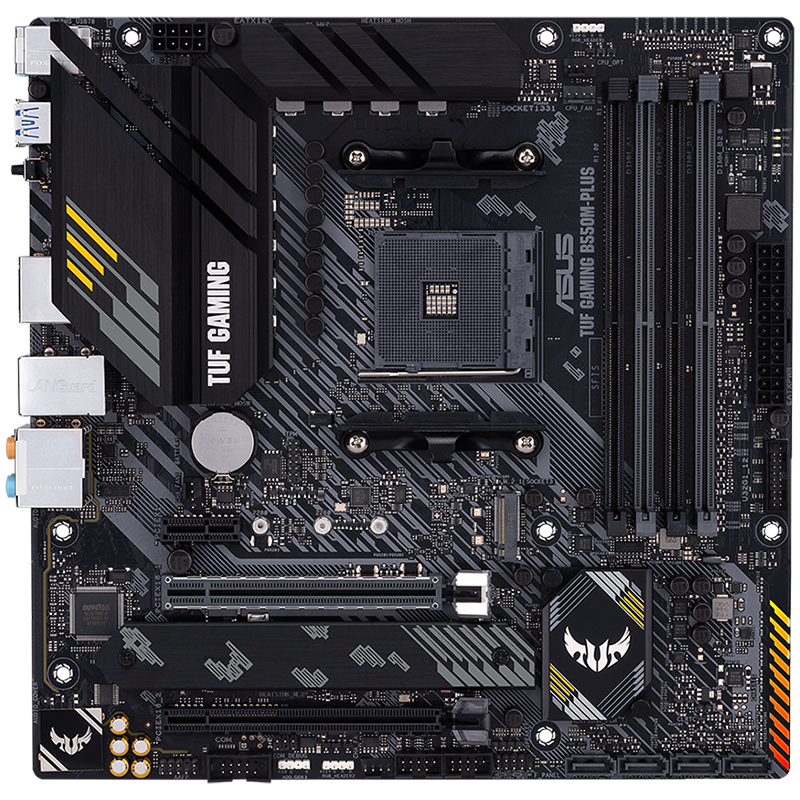

ASUS TUF GAMING B550M-PLUS AM4 mATX gaming MB
300,00 KM
Garancija: 36 mjeseci(a)
ASUS TUF GAMING B550M-PLUS AM4 mATX gaming MB – AMD B550 4xDIMM DDR4 2xM.2 4xSATA PCIe 4.0 2.5Gb Ethernet 1xDisplayPort 1xHDMI with Aura Sync RGB lighting support
| Chipset | AMD B550 |
| CPU podrška | AMD Ryzen Series |
| CPU podnožje | Socket AM4 |
| CPU Max. količina | 1 |
| Vrsta memorije | DDR4 SDRAM |
| Format memorije | DIMM 288-pin |
| Brzina memorije | 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300) 2800MHz(PC4-22400) 3000MHz(PC4-24000) 3200MHz(PC4-25600) |
| Max. kapacitet memorije | 128 GB |
| Količina utora | 4 |
| Provjera pogrešaka | ECC |
| Značajke memorije | Unbuffered |
| Integriran | Storage Controller: Supports: Level 0, Level 1, Level 10 SATA III-600 (4) Storage Controller: PCIe 4.0 x4/SATA (1 x M.2 (Key M)) Storage Controller: PCIe 3.0 x4/SATA (1 x M.2 (Key M)) Wi-Fi Controller: Intel Wi-Fi 6 AX200 PCI-Express () |
| Integrirani audio | Da |
| Vrsta | Integriran |
| Chipset | Realtek ALC S1200A |
| Širina audio podataka | 24-bit |
| Audio izlaz | 7.1 Channel Surround |
| Audio standard | DTS HD audio |
| Integrirani LAN | Da |
| LAN Chipset | Realtek RTL8125B |
| Wi-Fi | IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n Wi-Fi 4 IEEE 802.11ac Wi-Fi 5 IEEE 802.11ax Wi-Fi 6 |
| Bluetooth | Bluetooth 5.1 |
| Podržana brzina | 2.5 Gbps |
| PCI Express 3.0 x16 | 1 |
| PCI Express 3.0 x1 | 1 |
| PS/2 | 1 |
| DisplayPort | 1 |
| HDMI | 1 (HDMI (Type A)) |
| LAN | 1 (RJ-45) |
| USB 3.2 Gen 2 | 1 (USB 3.2 (type C)); 1 (USB 3.2 (type A)) |
| USB 3.2 Gen 1 | 4 (USB 3.1 (type A)) |
| USB 2.0 | 2 (4-pin USB (type A)) |
| S/PDIF-out Optical | 1 |
| Audio izlaz | 5 (3.5-mm minijack) |
| BIOS vrsta | AMI |
| BIOS | UEFI PXE boot 256 Mb Flash ROM |
| Power Connectors Type | 24+8 pin |
| Mainboard Features | AMD 2-Way CrossFire Technology Aura Sync RGB LED |
| Kabeli | 2 x SATA 6Gb/s Cables |
| Dodaci | I/O Shield Priručnik Vijci DVD Disc WiFi antenna |
| Format | Micro ATX |
| Visina (mm) | 244 mm |
| Širina (mm) | 244 mm |
| Dužina (mm) | 275 mm |
| Širina (mm) | 266 mm |
| Visina (mm) | 67 mm |
