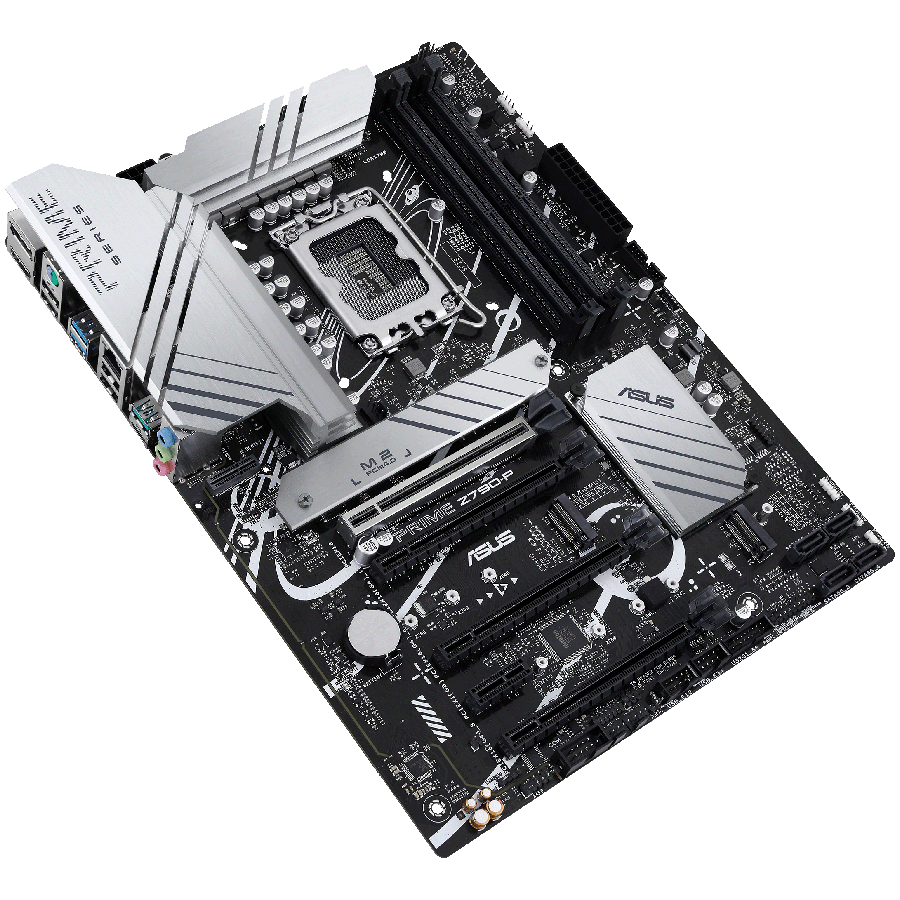

ASUS PRIME Z790-P LGA1700 ATX MB – Intel Z790
450,00 KM529,00 KM (-15%)
Garancija: 36 mjeseci(a)
ASUS PRIME Z790-P LGA1700 ATX MB – Intel Z790 4xDIMM DDR5 3xM.2 4xSATA PCIe 5.0 2.5Gb Ethernet 1xDisplayPort 1xHDMI with Aura Sync support
| Chipset | Intel Z790 |
| CPU podrška | Intel 12th Gen Processors Intel 13th Gen Processors |
| CPU podnožje | Socket 1700 |
| Architecture Features | Intel Turbo Boost Technology 2.0 Intel® Rapid Storage Technology enterprise Intel Turbo Boost Technology 3.0 |
| CPU Max. količina | 1 |
| Vrsta memorije | DDR5 SDRAM |
| Format memorije | DIMM 288-pin |
| Brzina memorije | 7200MHz |
| Max. kapacitet memorije | 192 GB |
| Količina utora | 4 |
| Provjera pogrešaka | non-ECC |
| Značajke memorije | Two DDR Channels Unbuffered XMP OptiMem II |
| Integriran | Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 SATA III-600 (4) Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 PCI Express 4.0 x4 (2 x M.2 (Key M)) Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 PCIe 4.0 x4/SATA (1 x M.2 (Key M)) |
| Support | Wi-Fi Controller: 1 x M.2 (Key E) |
| Integrirani audio | Da |
| Vrsta | Integriran |
| Širina audio podataka | 24-bit |
| Audio izlaz | 7.1 Channel Surround |
| Audio standard | HD audio |
| Integrirani LAN | Da |
| Podržana brzina | 2.5 Gbps |
| PCI Express 5.0 x16 | 1 |
| PCI Express 3.0 x1 | 1 |
| PCI Express 4.0 x16 | 3 |
| DisplayPort | 1 |
| USB 3.2 Gen 2 | 1 (USB 3.2 (type A)) |
| LAN | 1 (RJ-45) |
| Audio izlaz | 3 (3.5-mm minijack) |
| HDMI | 1 (HDMI (Type A)) |
| USB 3.2 Gen 2 x2 | 1 (USB 3.2 (type C)) |
| USB 2.0 | 4 (USB 2.0 (type A)) |
| USB 3.2 Gen 1 | 2 (USB 3.2 (type A)) |
| PS/2 | 1 |
| BIOS vrsta | AMI |
| BIOS | ASUS CrashFree BIOS 3 UEFI PXE boot ASUS EZ Flash 3 192 (128+64) Mb Flash ROM |
| Mainboard Features | RGB LED |
| Podržani operativni sustavi | Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit |
| Kabeli | 2 x SATA 6Gb/s Cables |
| Dodaci | I/O Shield Brzi priručnik Vijci |
| Format | ATX |
| Visina (mm) | 234 mm |
| Širina (mm) | 305 mm |
| Dužina (mm) | 338 mm |
| Širina (mm) | 273 mm |
| Visina (mm) | 68 mm |
