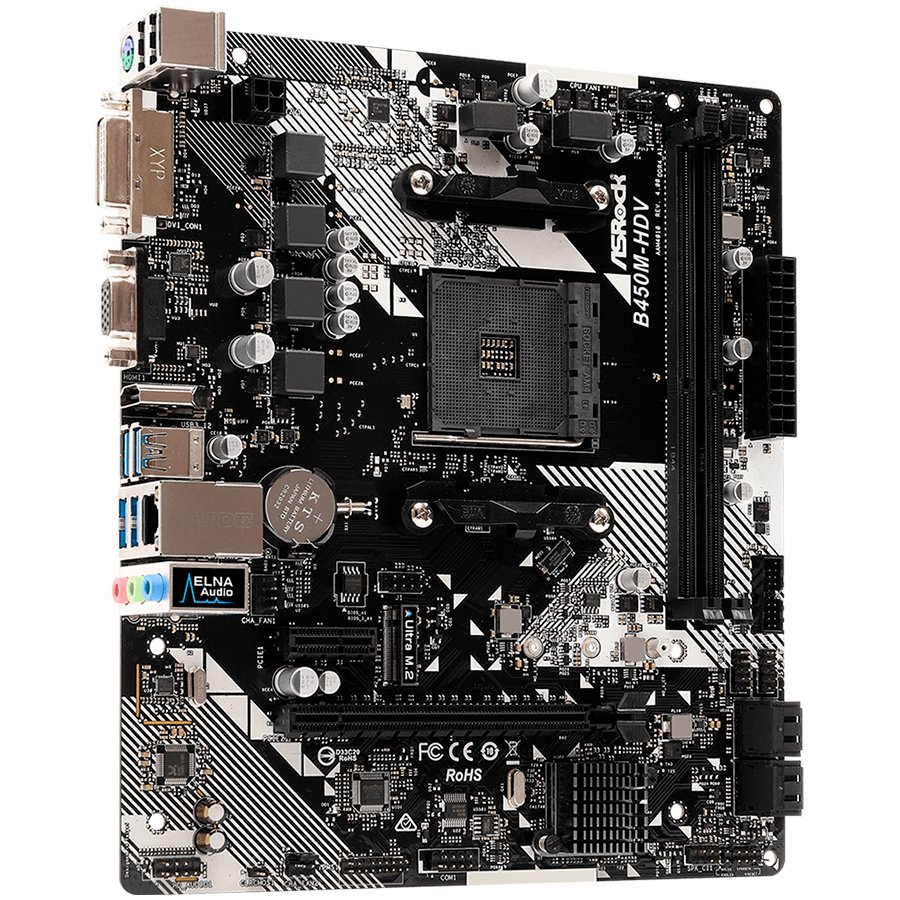

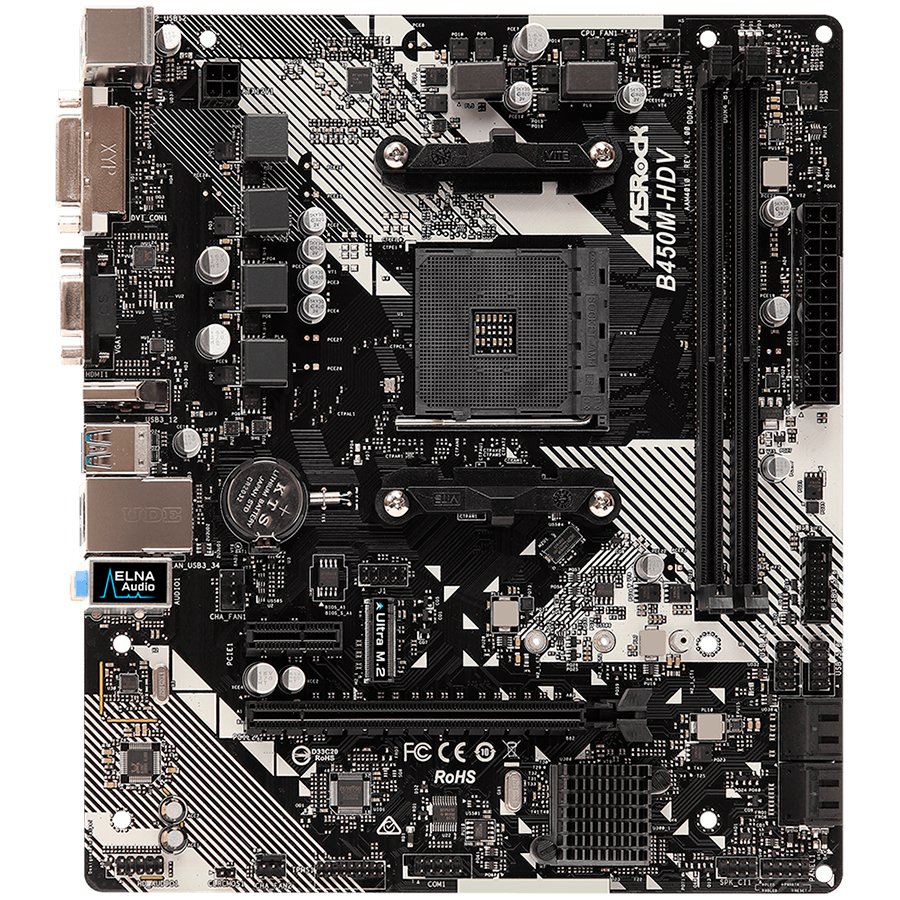

ASROCK Main Board Desktop B450M-HDV R4.0
121,00 KM151,00 KM (-20%)
Garancija: 24 mjeseci(a)
ASROCK Main Board Desktop B450M-HDV R4.0 (SAM4,2xDDR4,1xPCI 3.0×16,1xPCI Ex1,SATA III,1xM.2,1xUlraM.2,USB3.0,GLAN, VGA,DVI,HDMI,) mATX Retail
| Chipset | AMD B450 |
| CPU podnožje | Socket AM4 |
| CPU Max. količina | 1 |
| Vrsta memorije | DDR4 SDRAM |
| Format memorije | DIMM 288-pin |
| Brzina memorije | 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2667MHz(PC4-21300) 2933MHz(PC4-23400) |
| Max. kapacitet memorije | 32 GB |
| Količina utora | 2 |
| Značajke memorije | Two DDR Channels Unbuffered Dual Rank Single Rank |
| Integriran | Storage Controller: SATA III-600 (4) Storage Controller: PCIe 3.0 x4/SATA (1 x M.2 (Key M)) |
| Integrirani audio | Da |
| Vrsta | Integriran |
| Chipset | Realtek ALC887 |
| Audio izlaz | 7.1 Channel Surround |
| Audio standard | HD audio ELNA Premium Audio Capacitors |
| Integrirani LAN | Da |
| LAN Chipset | Realtek RTL8111H |
| Podržana brzina | Gigabit Ethernet/Fast Ethernet/Ethernet |
| PCI Express 3.0 x16 | 1 |
| PCI Express 2.0 x1 | 1 |

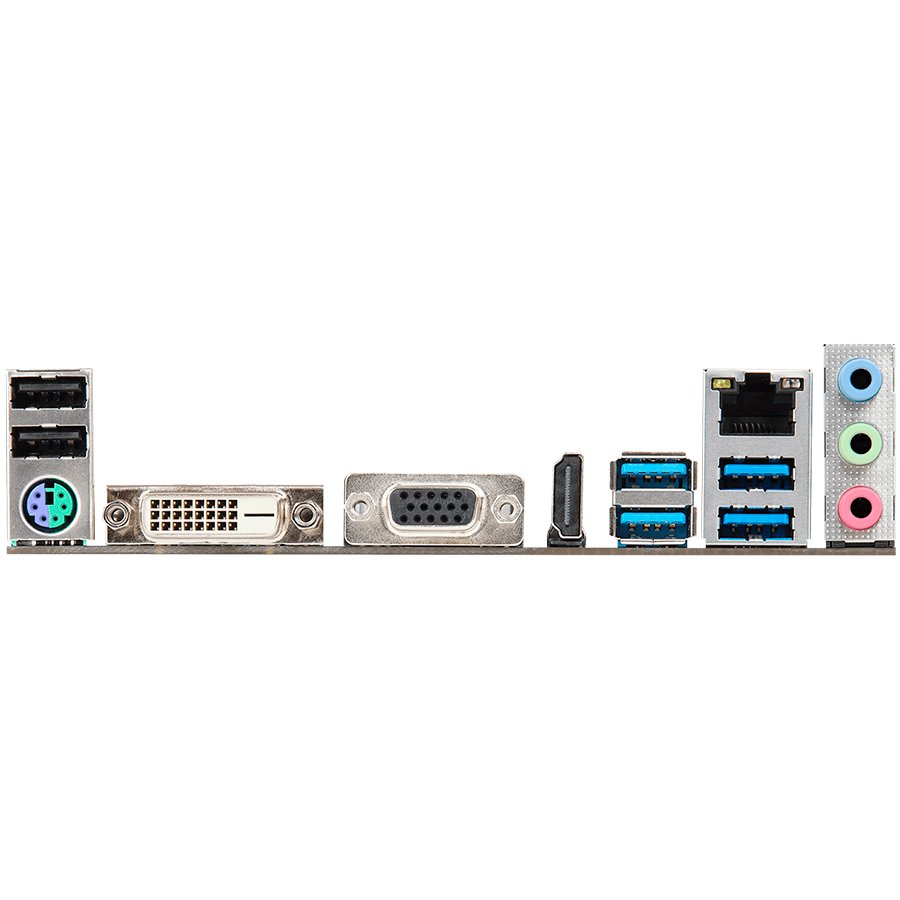

| PS/2 | 1 |
| VGA | 1 (15-pin D-sub) |
| DVI | 1 (DVI-D) |
| HDMI | 1 (HDMI (Type A)) |
| USB 2.0 | 2 (USB 2.0 (type A)) |
| USB 3.1 Gen 2 | 1 (USB 3.1 (type A)) |
| USB 3.1 Gen 1 | 4 (USB 2.0 (type A)) |
| LAN | 1 (RJ-45) |
| Audio izlaz | 3 (3.5-mm minijack) |
| BIOS vrsta | AMI |
| BIOS | PnP Support SMBIOS 2.3 Support Jumperfree Support 128Mb AMI UEFI Legal BIOS with GUI Support ACPI 5.1 Compliant Wake Up Events |
| Power Connectors Type | 24+4 pin |
| Mainboard Features | NVMe Support |
| Kabeli | 2 x SATA Data Cables |
| Dodaci | I/O Shield CD, Software Brzi priručnik Vijci |
| Format | Micro ATX |
| Visina (mm) | 201 mm |
| Širina (mm) | 230 mm |
| Dužina (mm) | 275 mm |
| Širina (mm) | 240 mm |
| Visina (mm) | 58 mm |
